AME Innovations
Sustainable and responsive
Hybrid Propulsion & Thrust

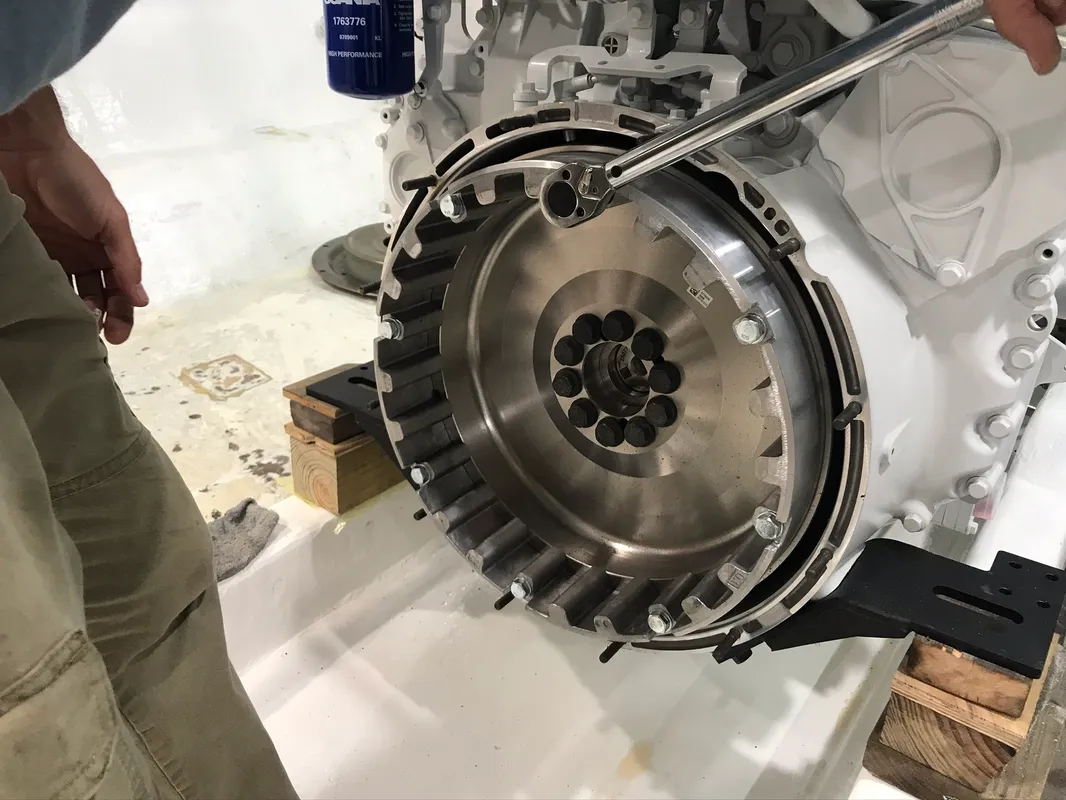

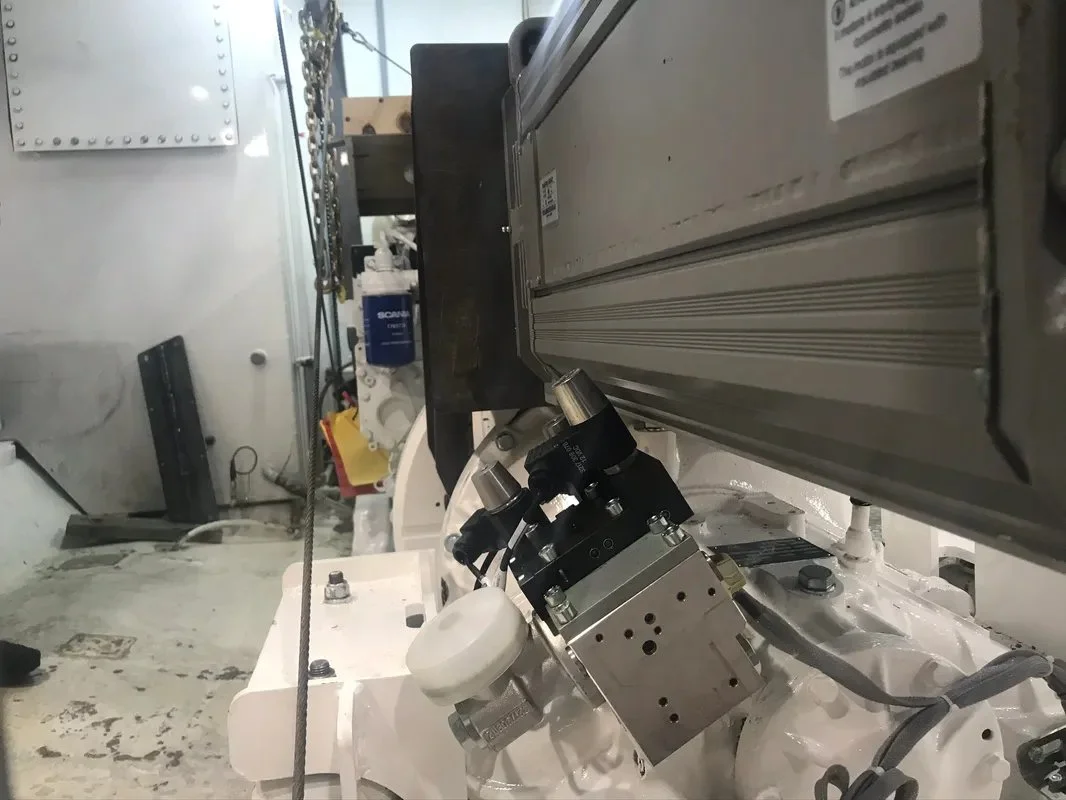

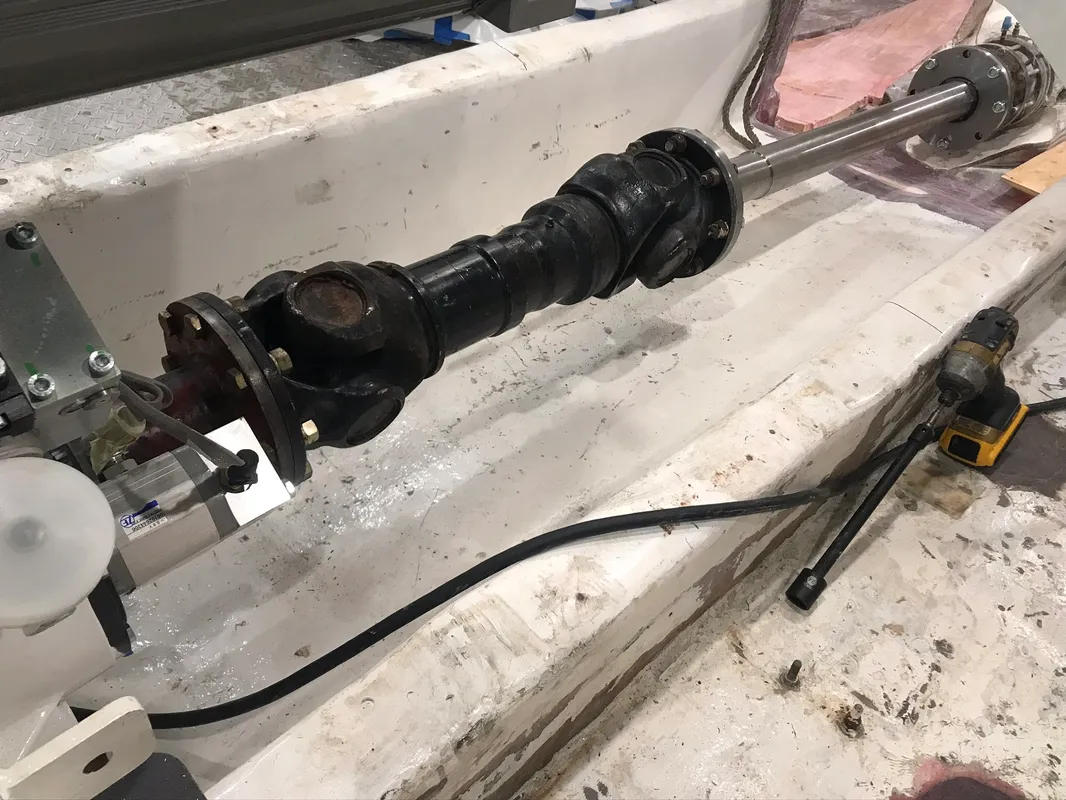

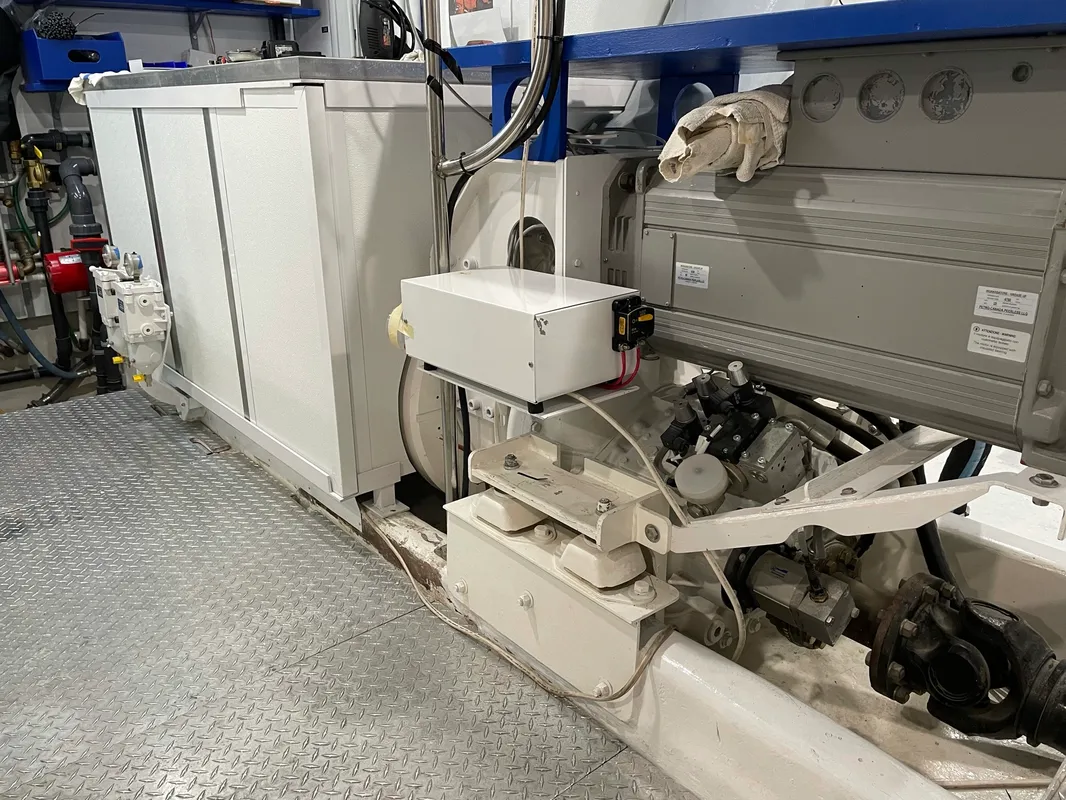

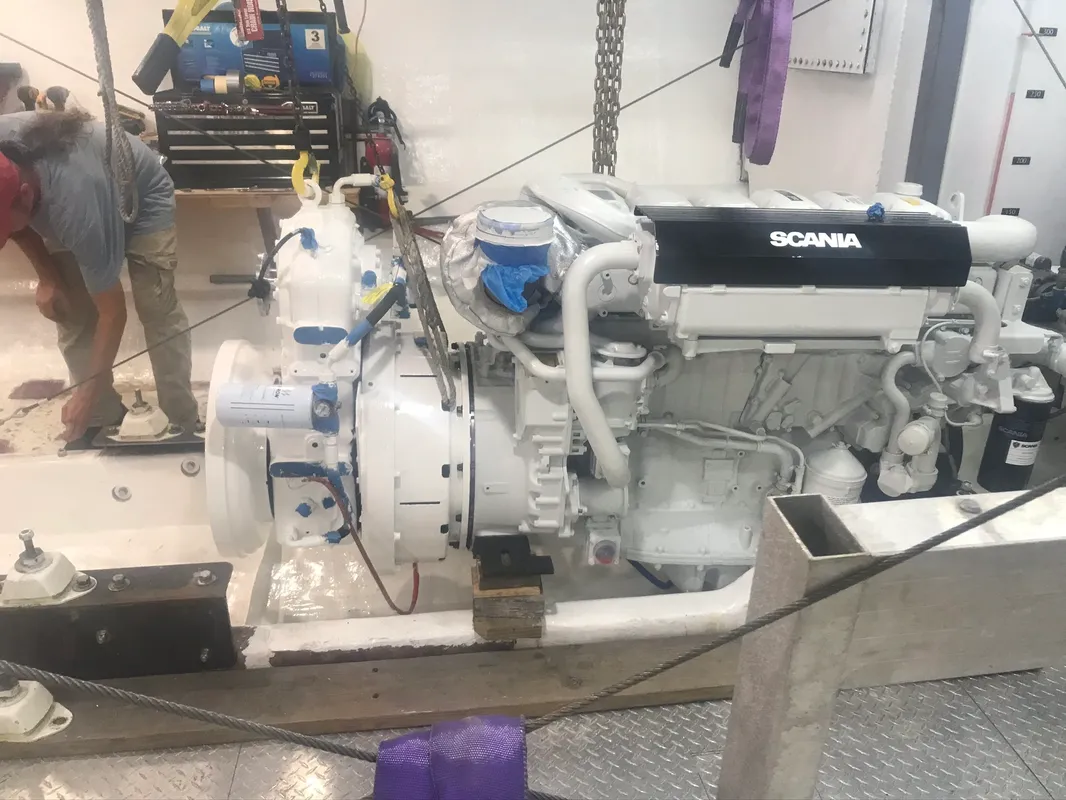

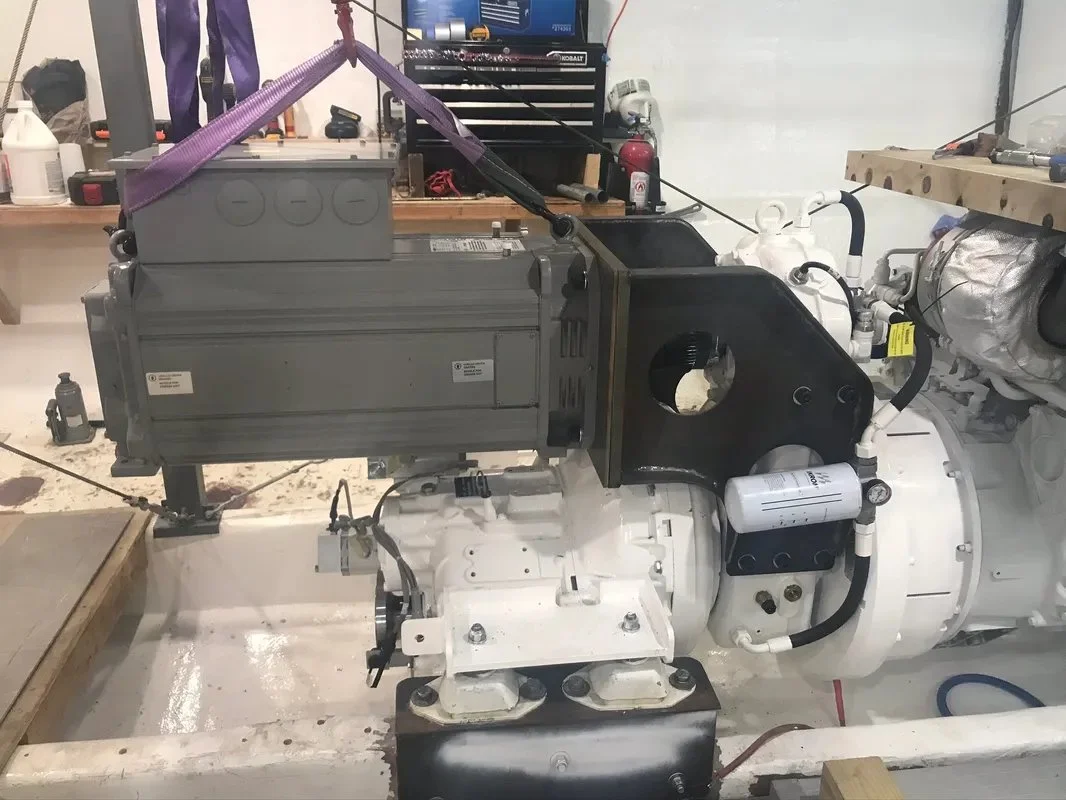

The world is demanding more efficient and sustainable solutions in marine environments and we are leading the way with our hybrid propulsion and thrust systems. We’ve teamed up with ZF, the world leader in marine drive train components to develop a hybrid propulsion system that can operate in both forward and reverse directions, a first of its kind in the market. Combined with our electric thrusters, a vessel can now move in all directions under hybrid-electric power, greatly increasing maneuverability and significantly lowering the complexity of complicated movements.
The system is powered directly from solar power generation or onboard battery banks, bringing emissions to near-zero when operating in port or near city centers. Onboard master computers monitor every component of the propulsion system from solar panels to propellers, maximizing efficiency, safety, maintenance predictability, and ease of use.
Self-Sufficient
Solar Power Generation
Our solar solution utilizes single silicon crystal cell technology which boasts higher efficiencies and sleeker aesthetics when compared to more common, lower performing poly-crystalline silicon options.
The panels, which can be seamlessly integrated into the a vessel’s existing profile, directly charge the lithium-ion battery banks, providing enough power for hotel loads and allowing a ship to stay anchored away from shore for extended periods of time.
View the progress videos of the solar roof frame construction as well as the cruising video with the finished frame fully installed.
See Sobe Sunset operational & cruising through the water, with the solar array atop the custom-built canopy frame

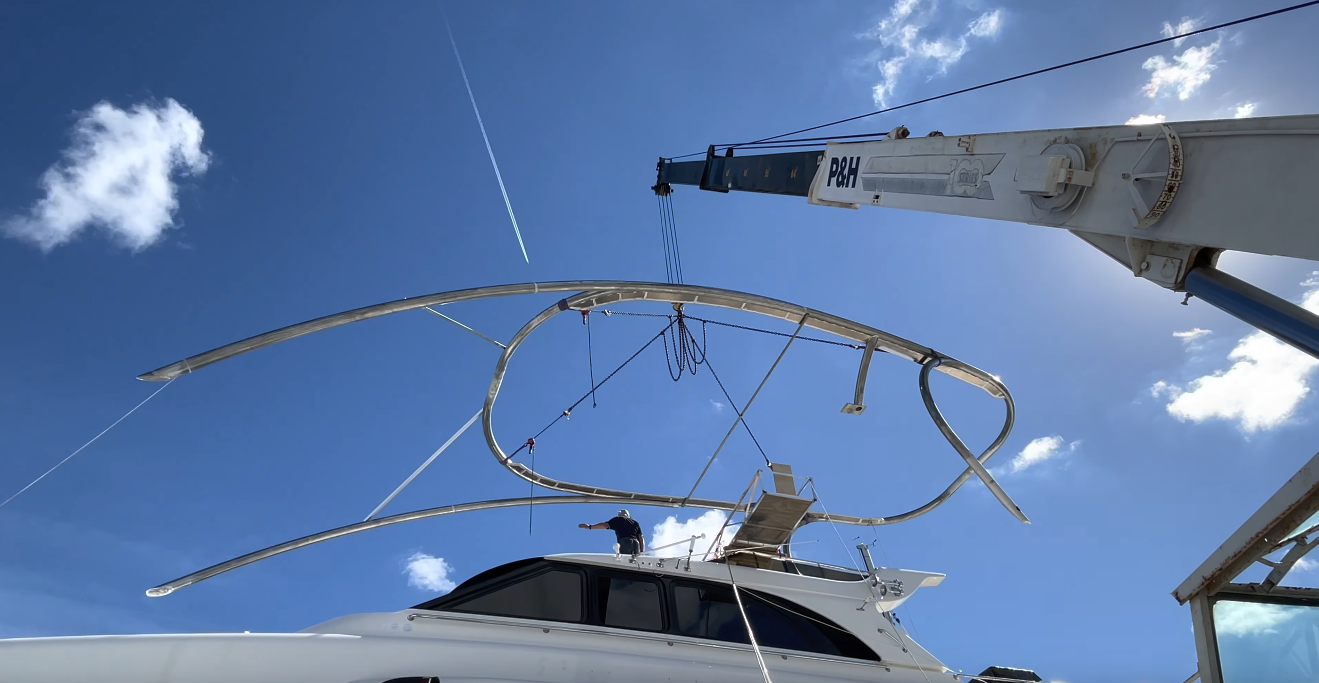

Removing solar roof frame

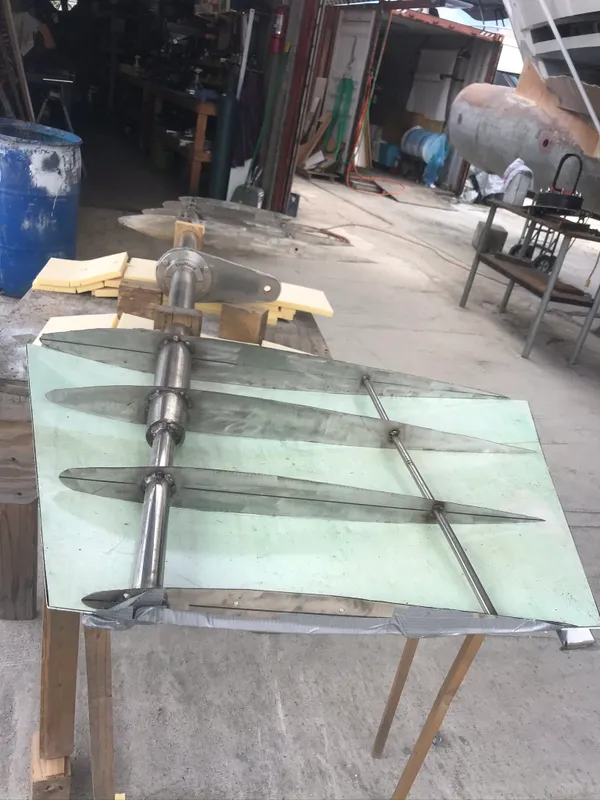

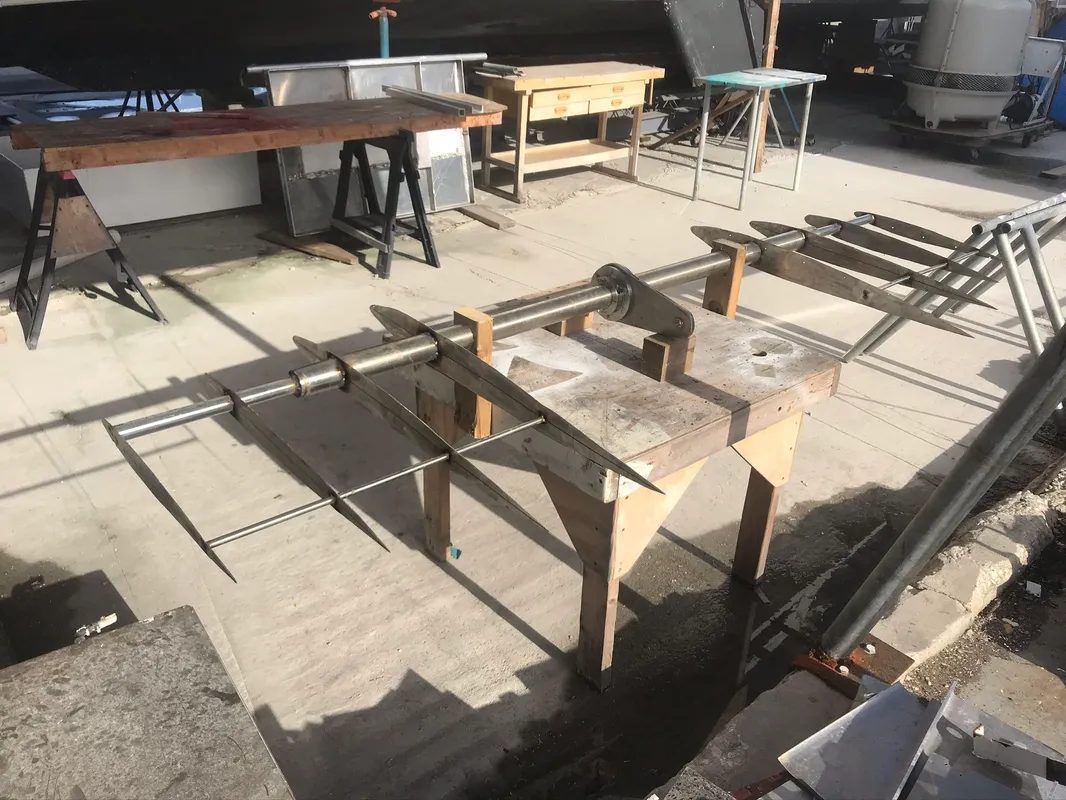

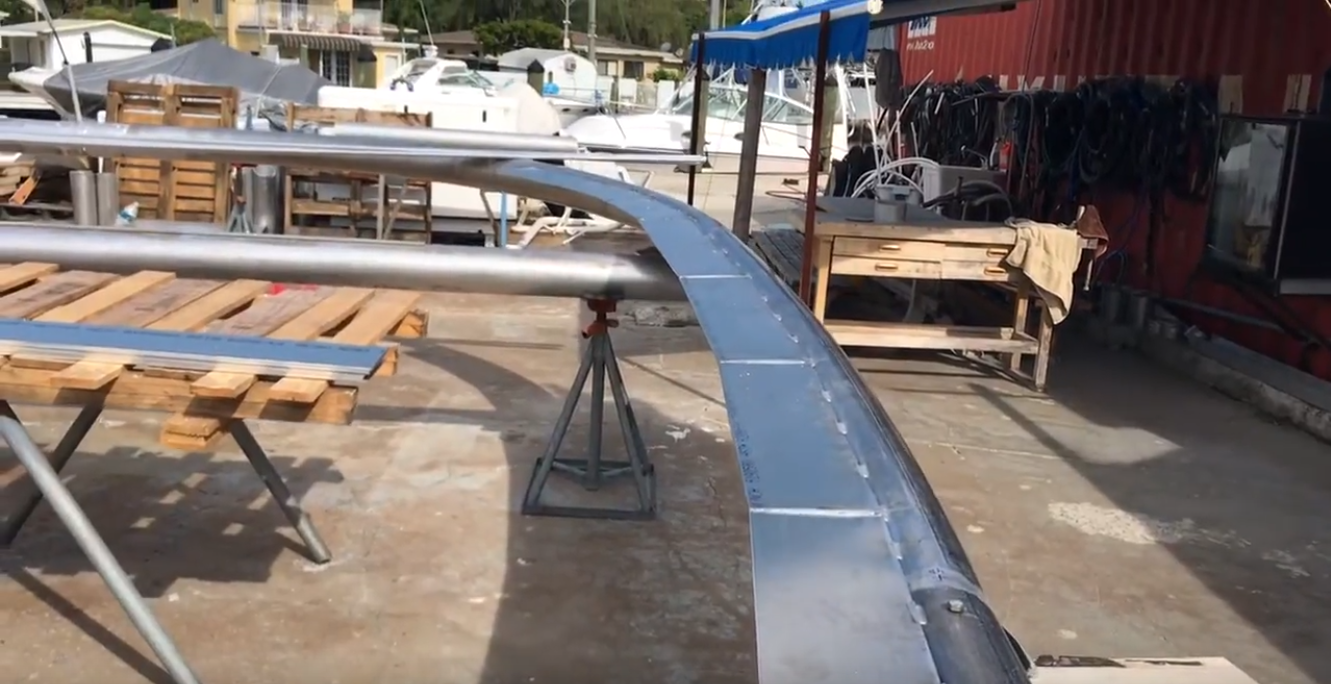

Solar roof frame weldment

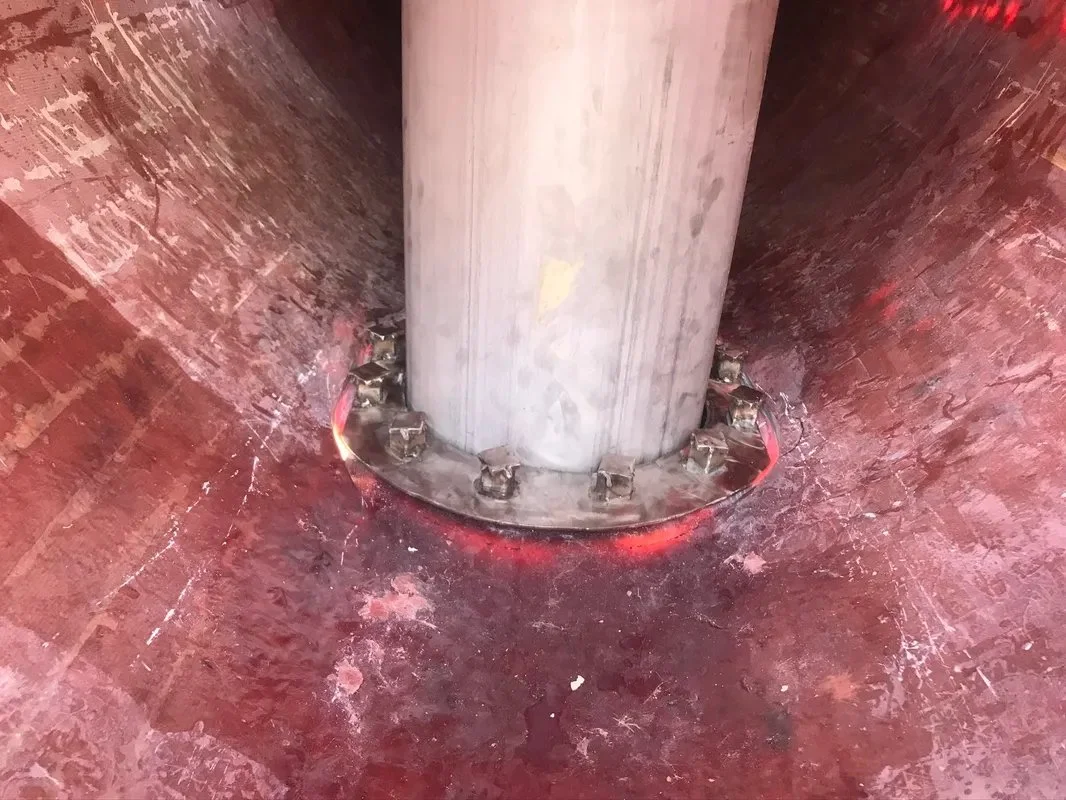

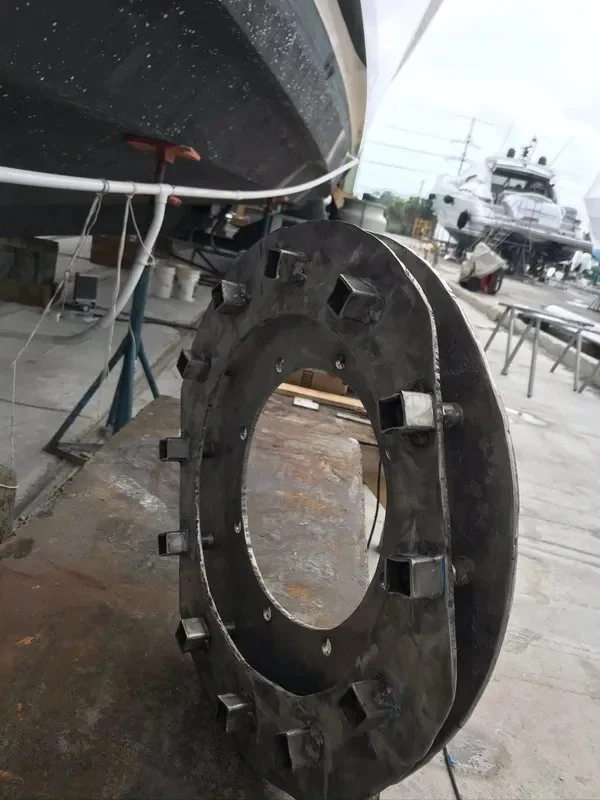

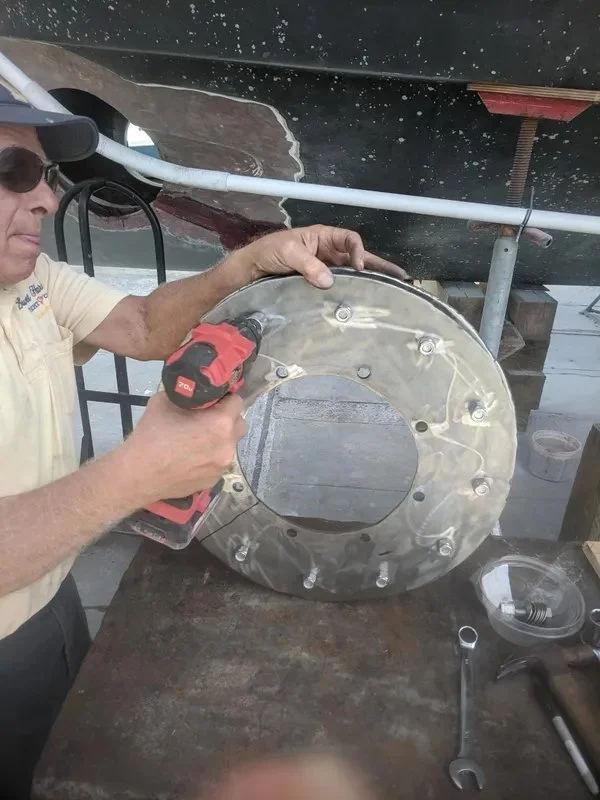

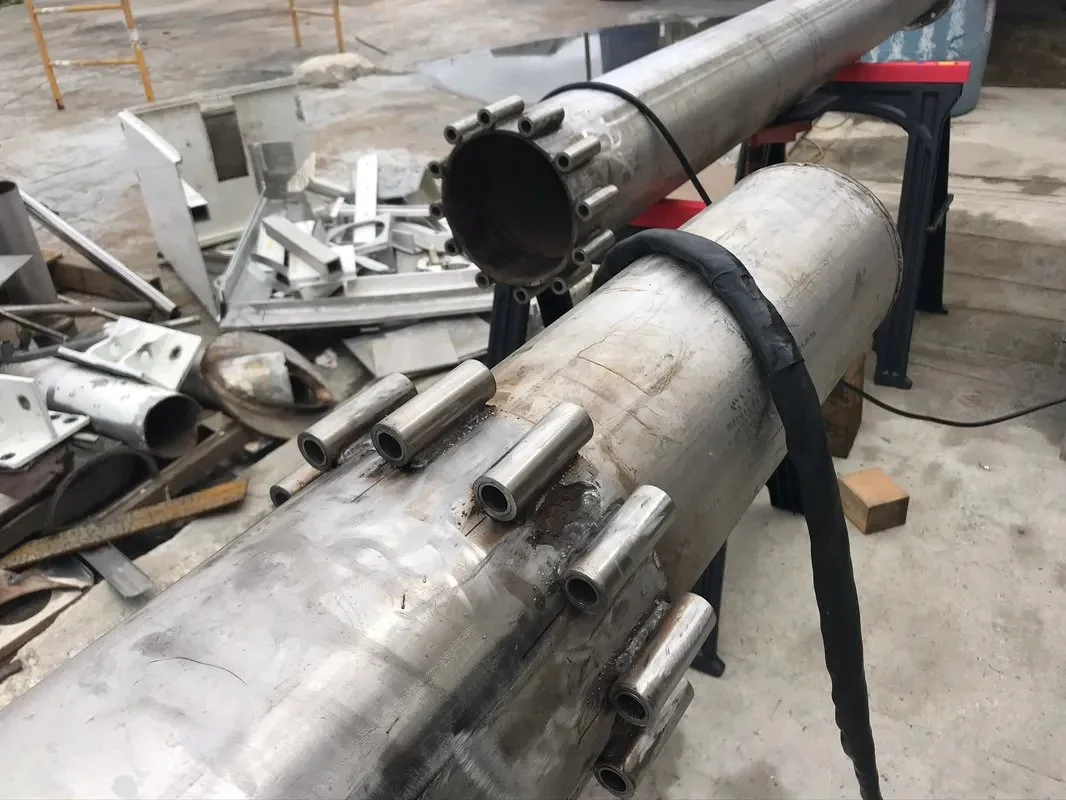

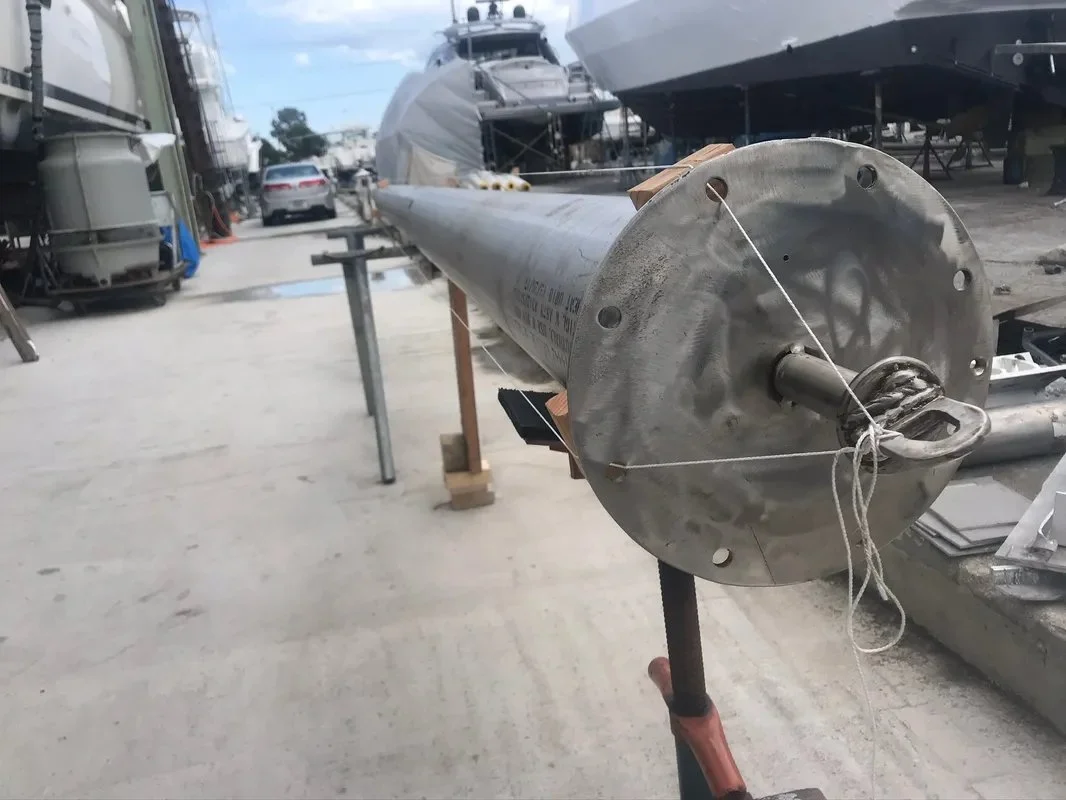

Spud pole engineered
Shallow Water Anchoring

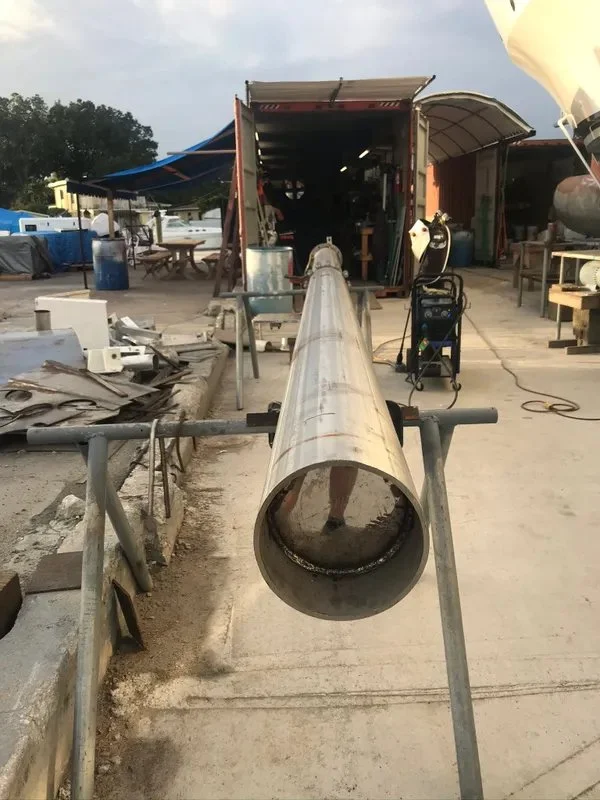

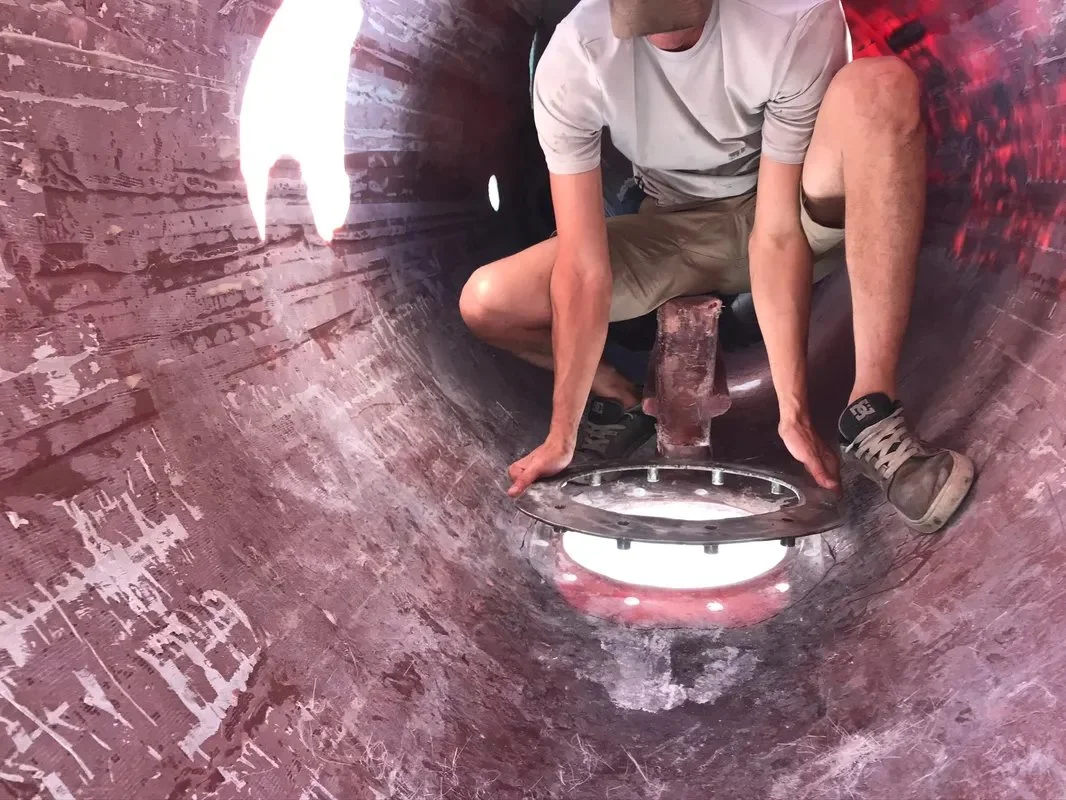

Our spud pole anchoring system is significantly safer and easier for an operator to deploy and retrieve than a conventional weighted anchor on a chain and allows the vessel to hold its position in a tight anchorage or in a channel. The spud pole is raised and lowered hydraulically using seawater pumps, typically used for fire extinguishing and water extraction.
While anchored, our hybrid propulsion system can act as a generator using tidal flow to spin the propellers and charge the onboard batteries, supplementing the solar power generation and paving the way for self-sufficient boats.
The top of the spud pole chamber can also serve as an awning for shade on the bow.
Spud pole anchoring walkthrough
Spud pole operation
Efficient & comfortable

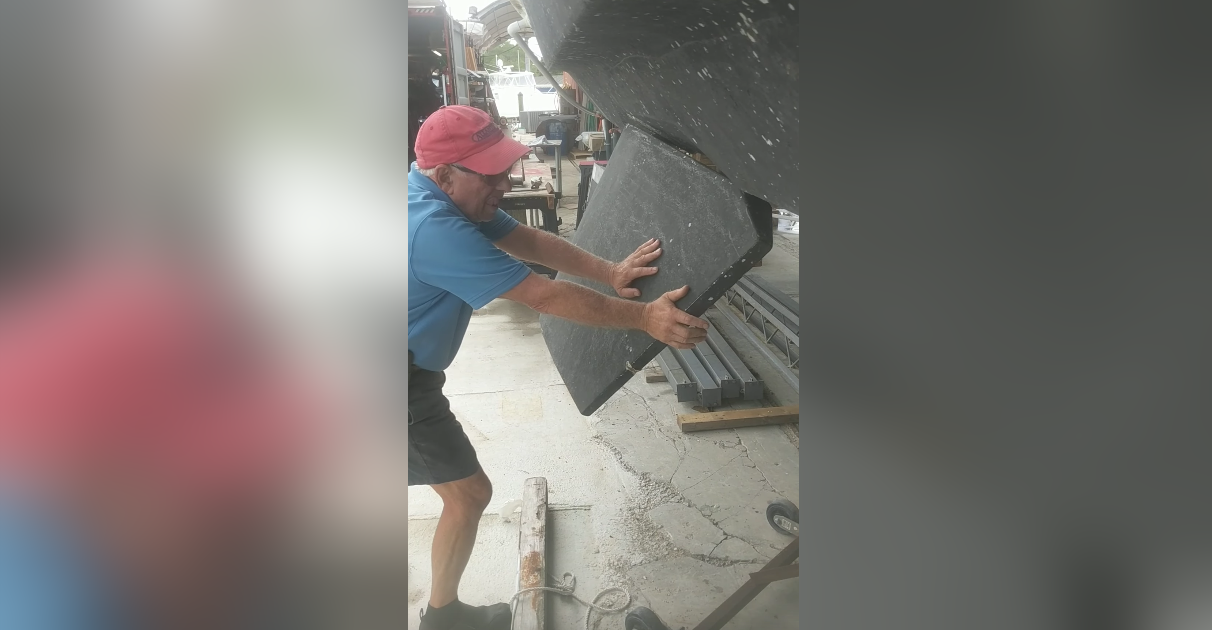

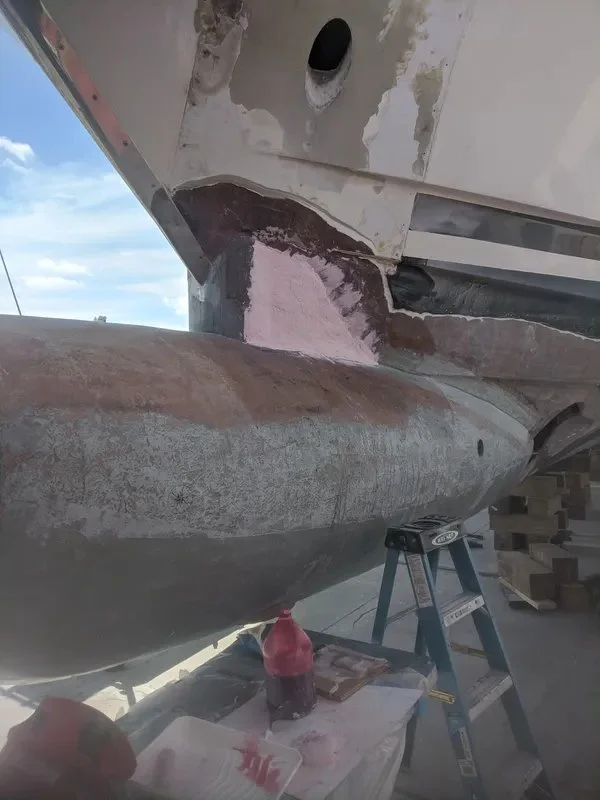

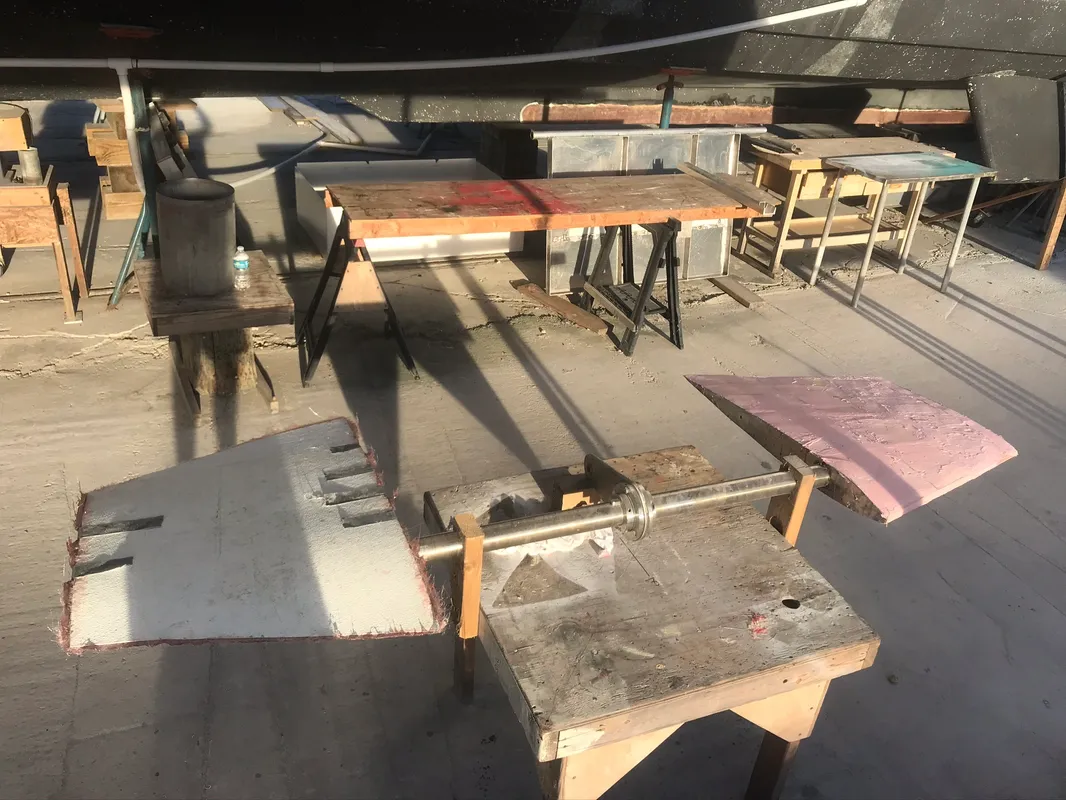

Roll Stabilization and Pitch Control
Traditional rudders positioned directly behind a boat’s propellers contribute tremendous drag force and wasted energy. Our rudderless directional control solutions remove these inefficiencies while providing the ultimate experience in comfort and ease of operation.

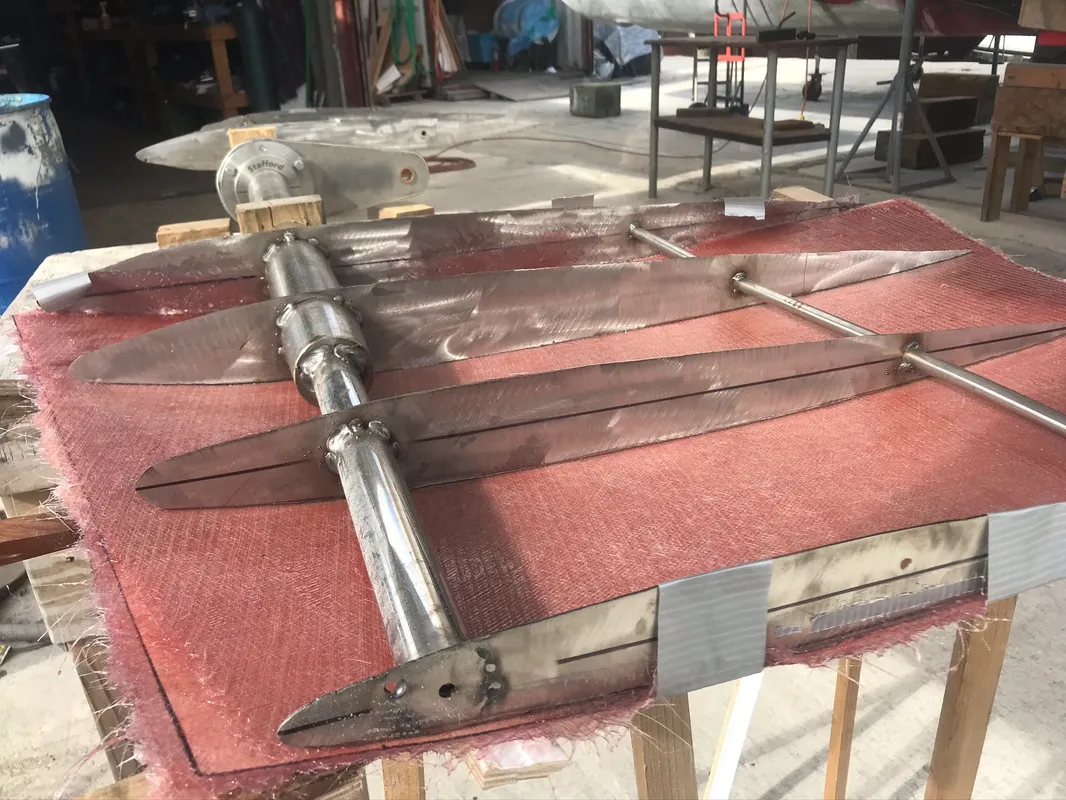

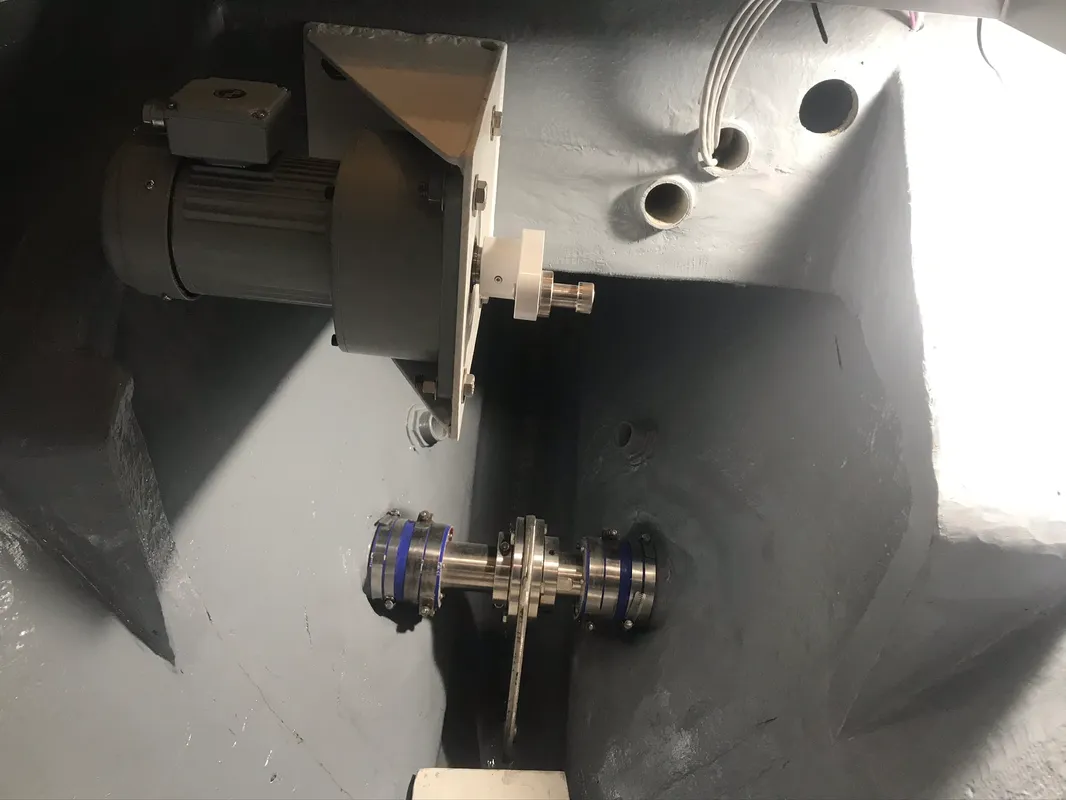

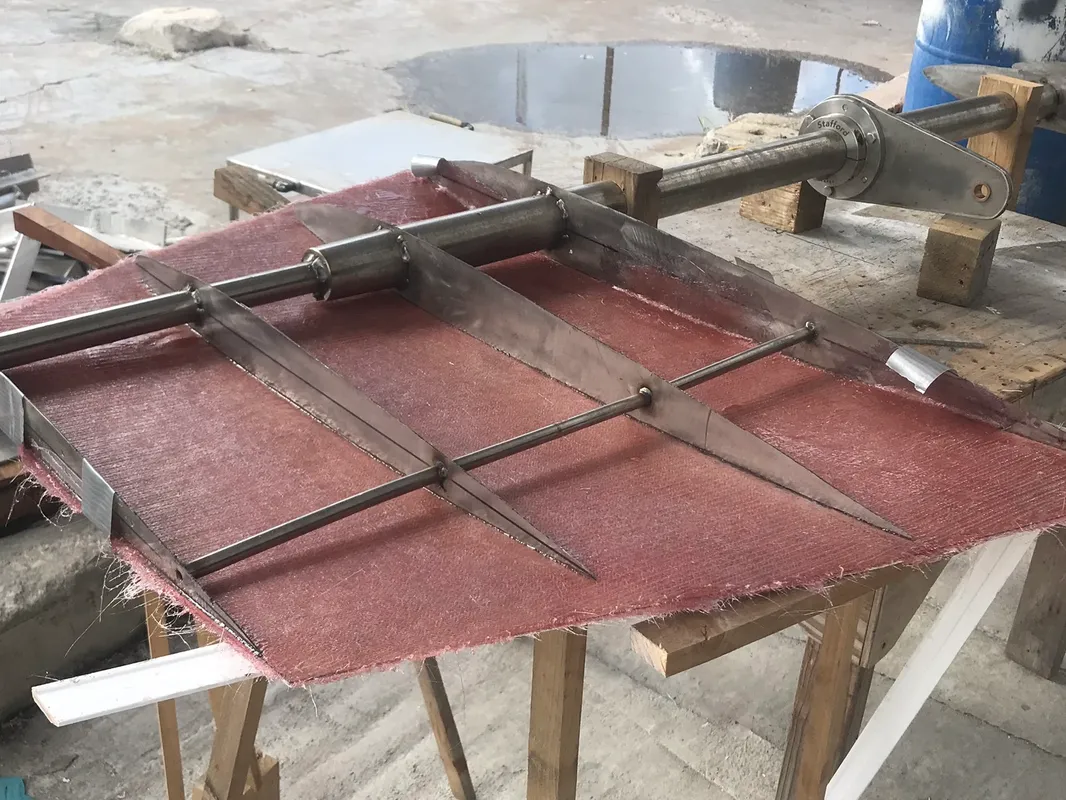

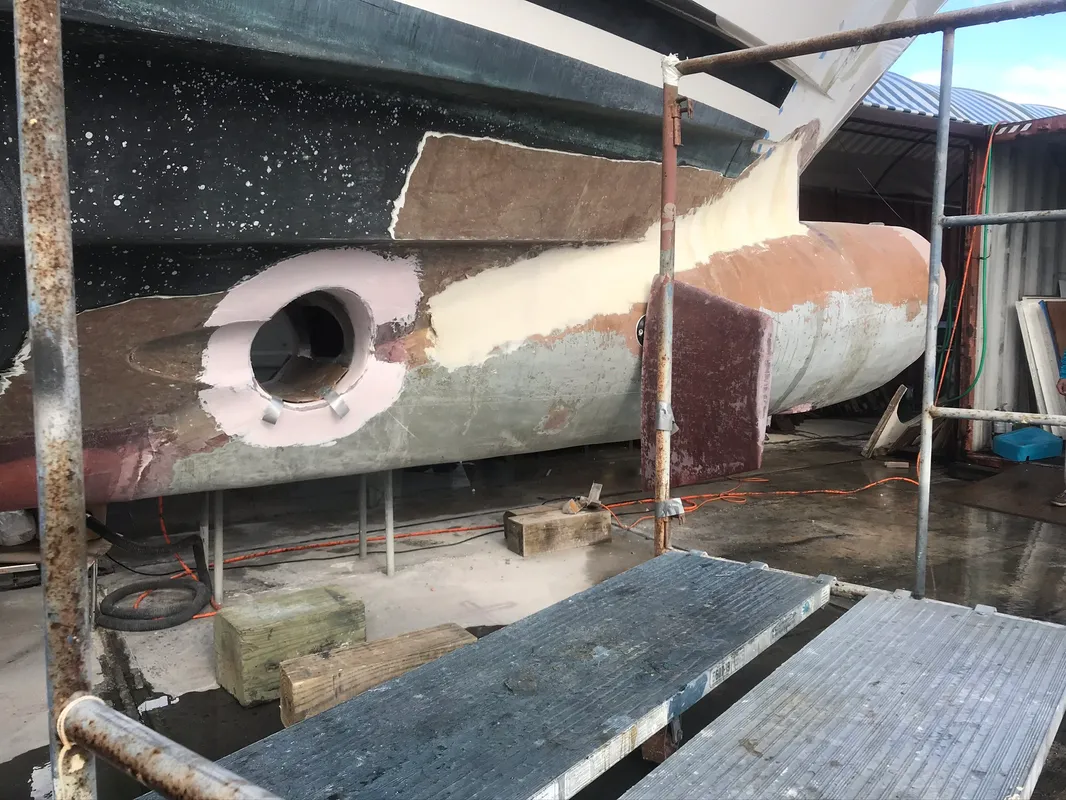

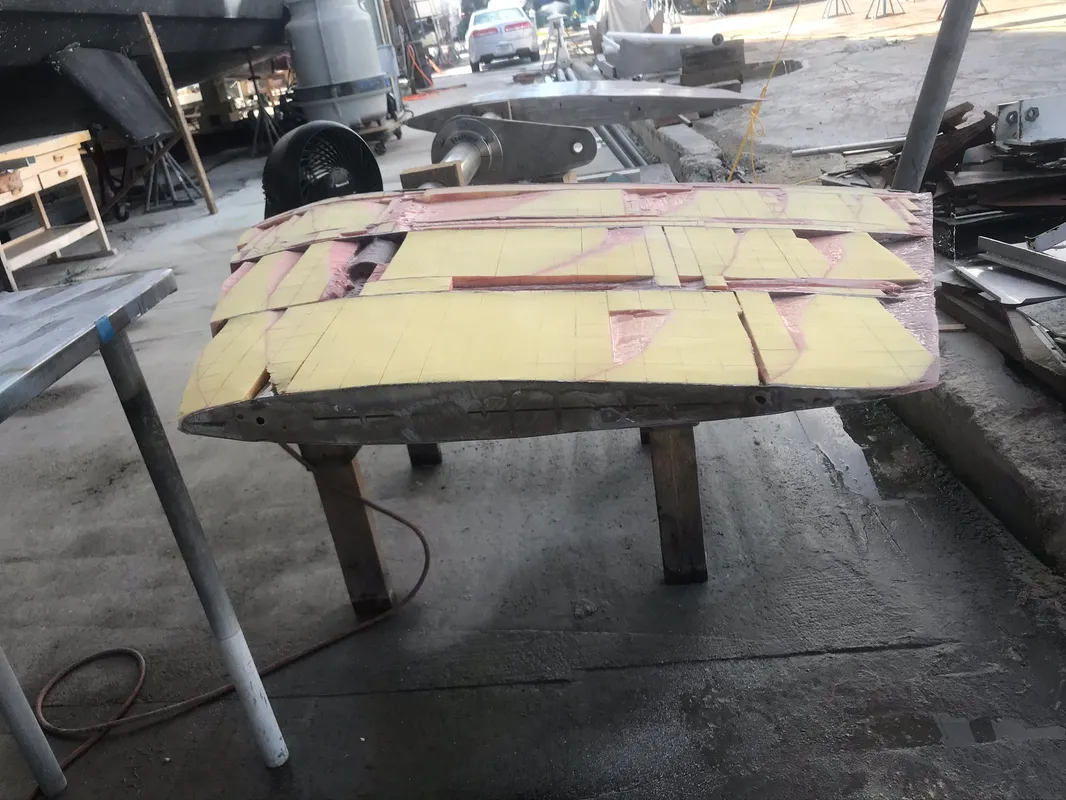

We’ve developed independently-activated port and starboard hydrofoils that work in combination with our fully-electric thrusters to counteract the motion of a vessel at sea. The ships motion and displacement are monitored using an array of sensors. Automated control algorithms use this information to activate the thrusters and hydrofoils as needed to reduce pitch and roll while underway and hold the ship in a fixed position during on-deck activities.
Bow fin pitch stabilizer test
Port side fin movement test
Revolutionary advancements
HVAC & Interior Climate Control
Cooling, heating and de-humidification for the interior environments onboard large vessels consume the most energy among all the vessels powered systems. Current systems simply turn on and off to meet air conditioning demands, wasting energy and drawing incredible power from the ships electrical system.
Our HVAC solution is a highly efficient digital scroll compressor controlled by variable frequency drive combined with temperature sensors throughout the vessel. A sophisticated control system regulates the compressor speed to meet the heating/cooling demands of the vessel’s various internal spaces as efficiently as possible, reserving more energy for travel and the other electrical systems onboard.
Highly intelligent
Remote Guidance & Operation
Our solutions are centered around making semi-autonomous, singlehanded operation a reality for large, complex boats. Our vessel-wide network of electric components, sensors, and controllers make it possible for a crew of engineers to operate remotely while increasing safety and comfort for those onboard.
Remote monitoring and operation of the vessel’s major navigation, engineering, and maintenance functions greatly reduces the need for onboard staff, resulting in a more intimate travel experience. The same systems used for remote monitoring are used to improve preventative maintenance capabilities, minimizing potential downtime due to unexpected maintenance.
Robust Construction

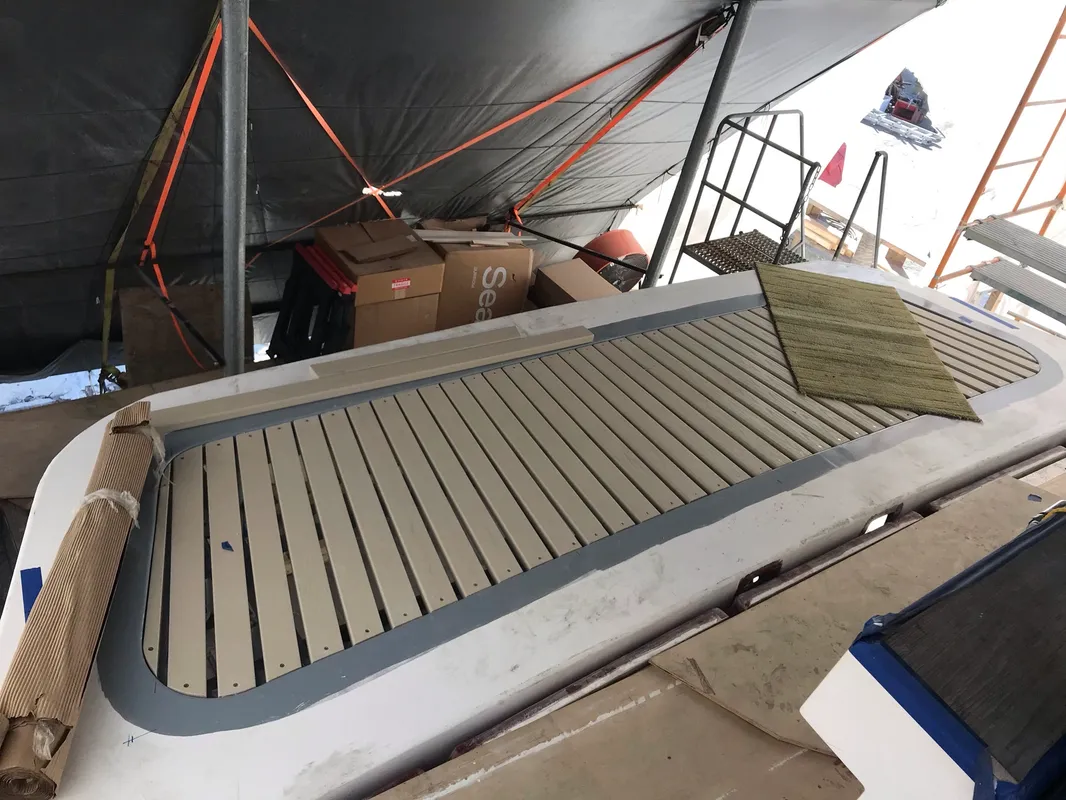

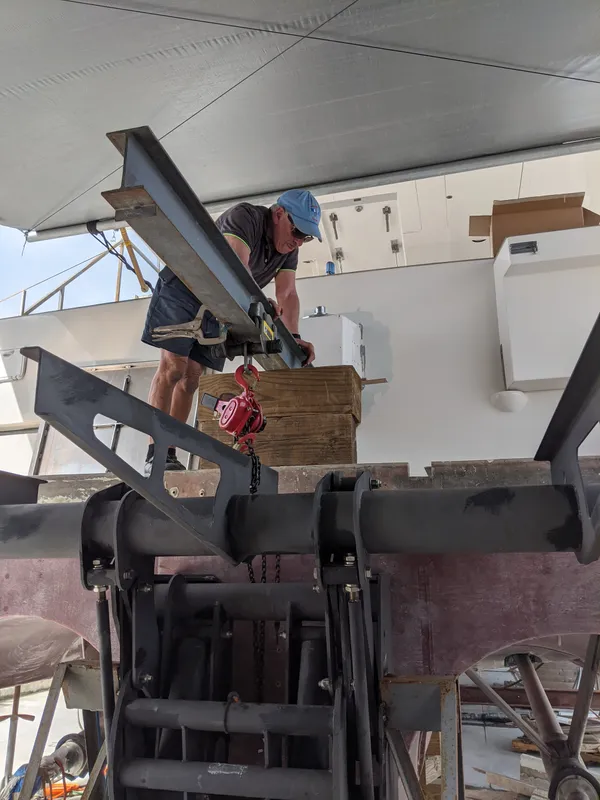

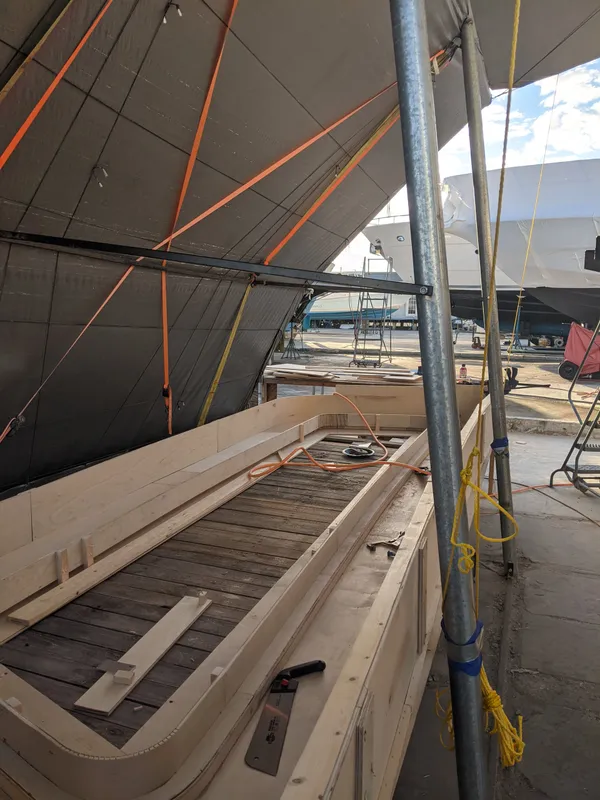

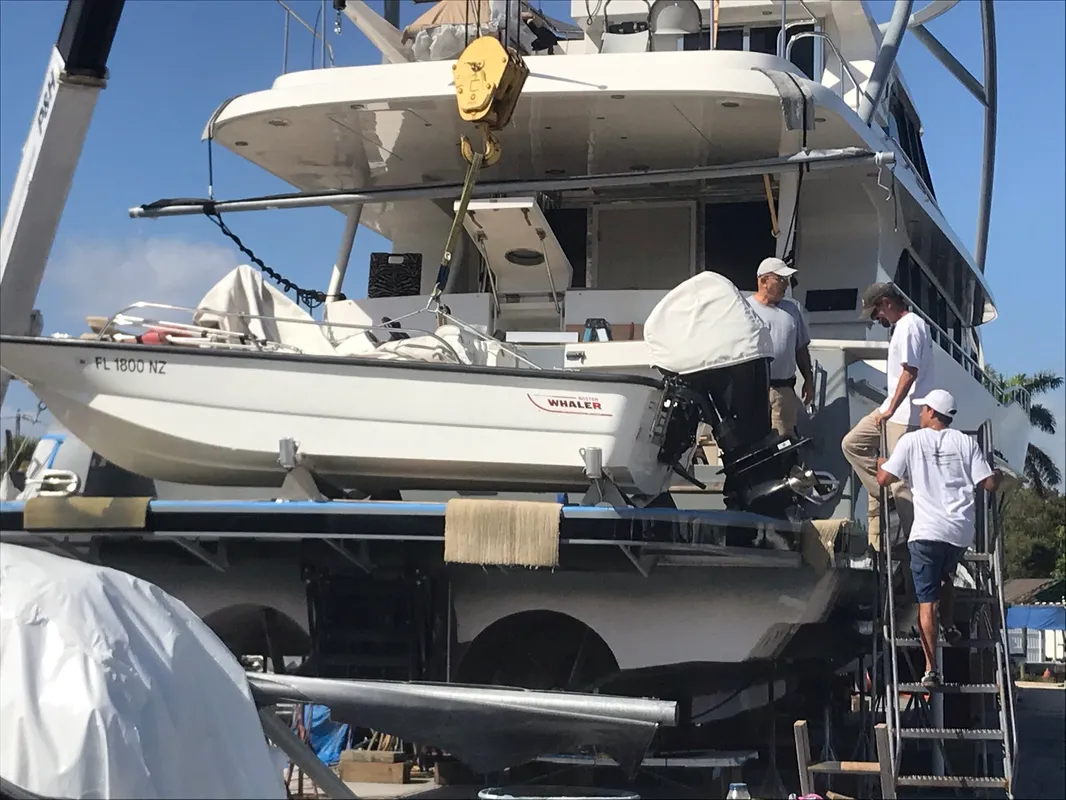

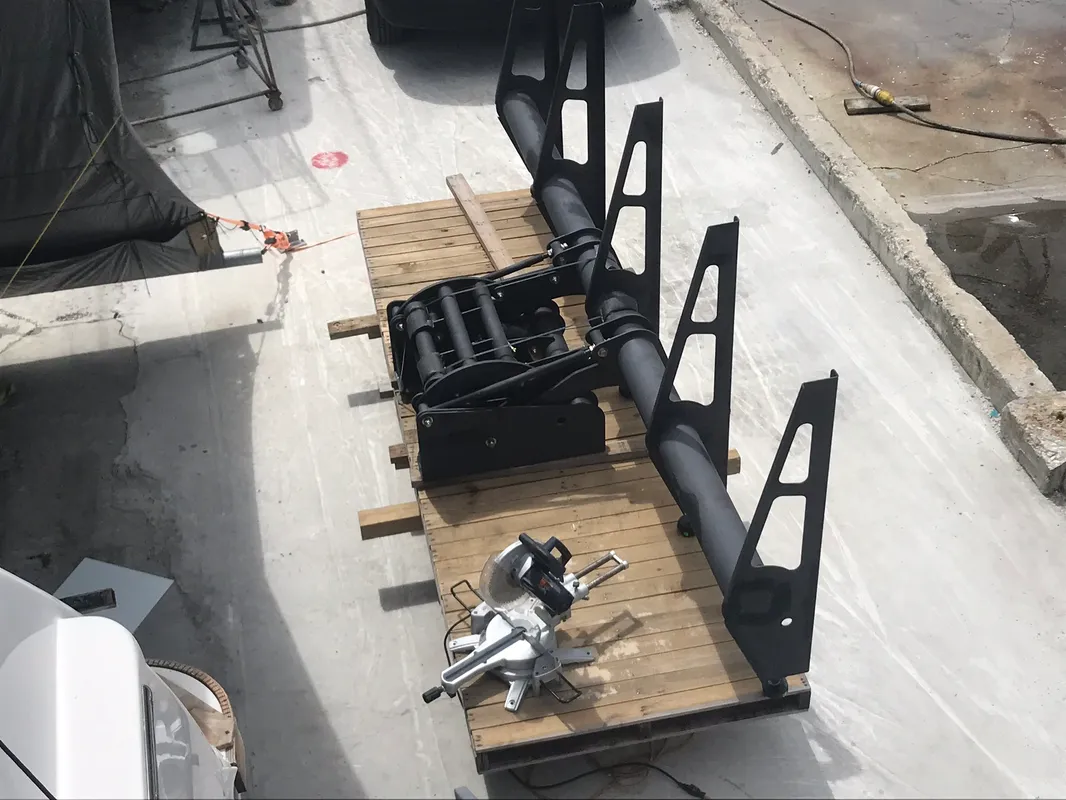

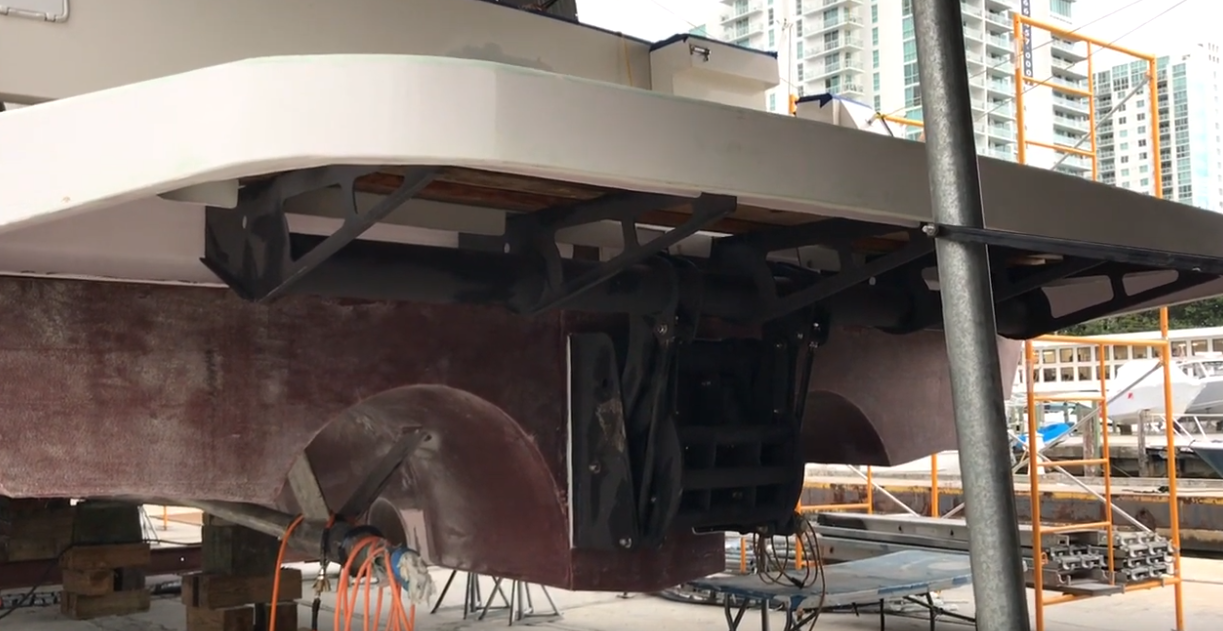

Hydraulic Lift Deck
Lift operational

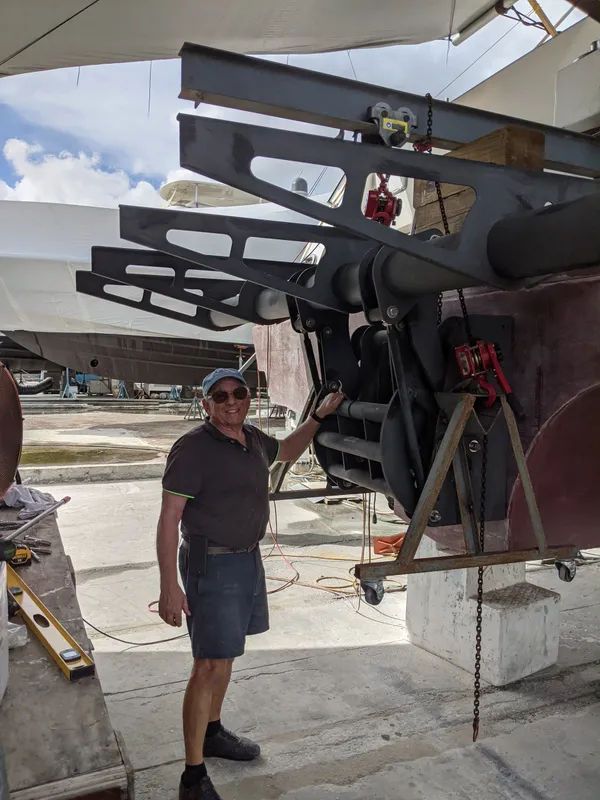

Lifting mechanism to aft position

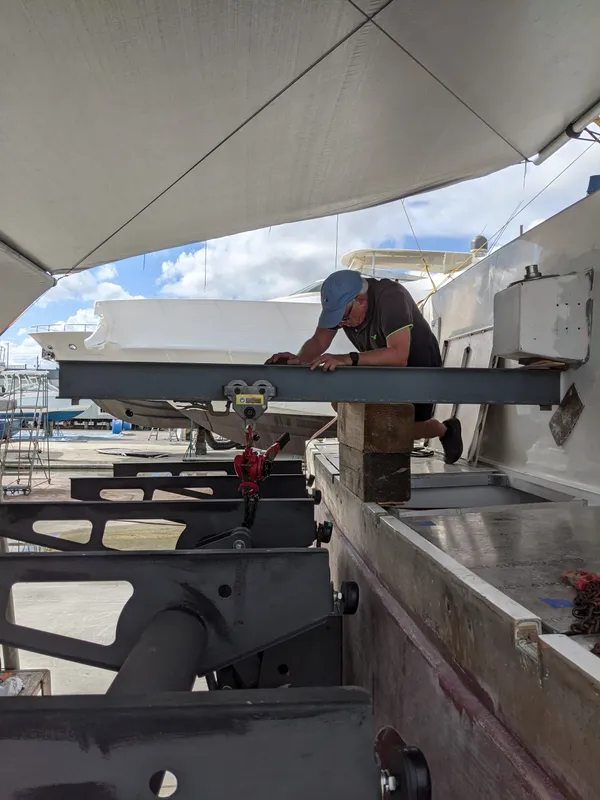

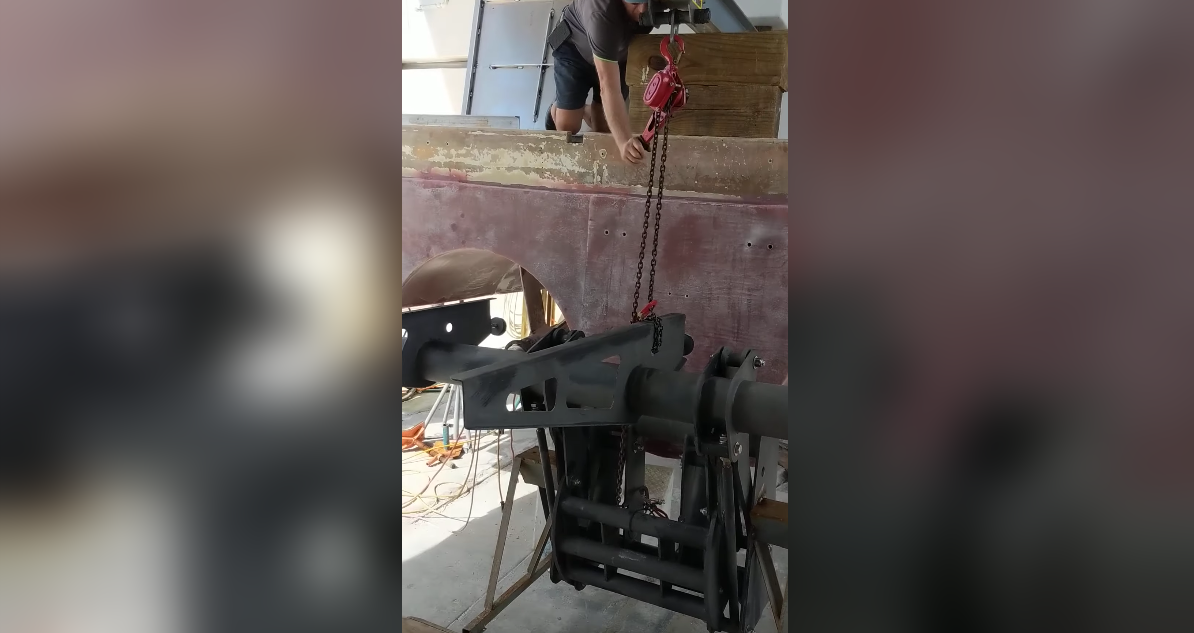

Early construction testing

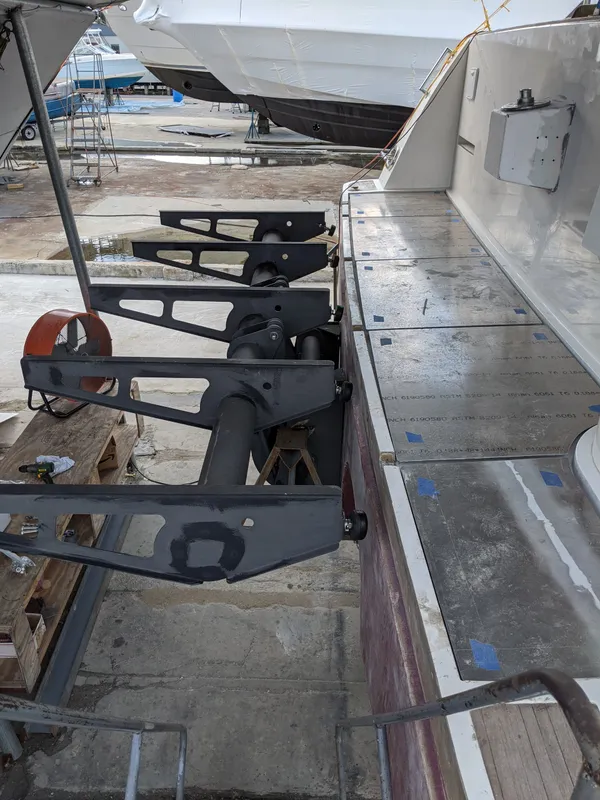

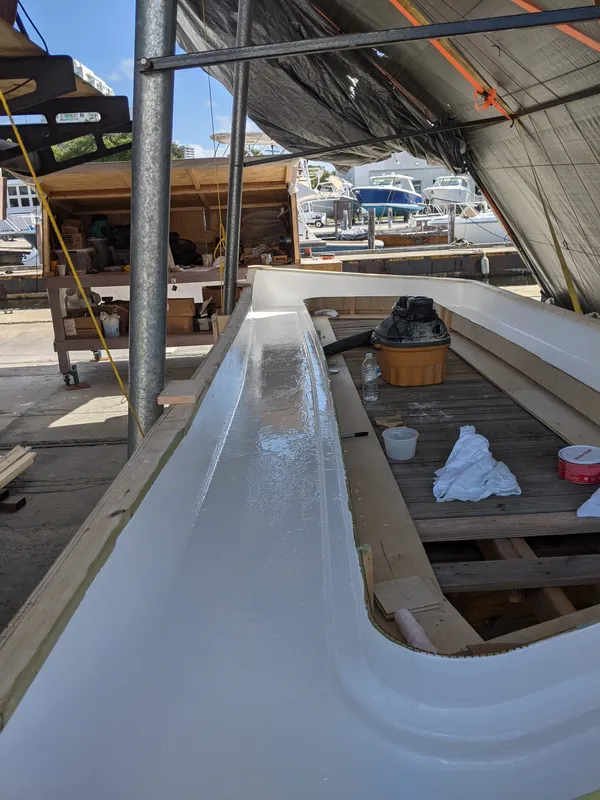

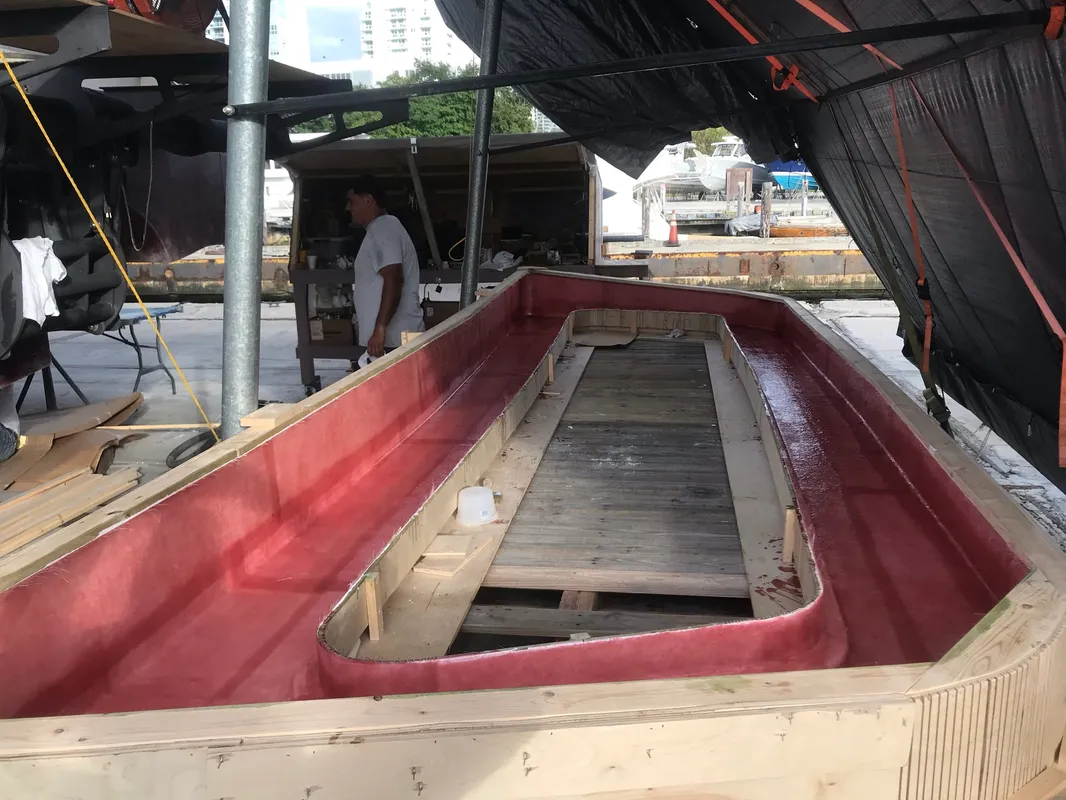

See the progression of our custom-built hydraulic lift deck — back from when it was bare brackets to the fully-functional, securely and robustly constructed component that it is now.
Renderings
Benefits for Luxury Yachts & Trawlers
Lower the barriers to spending time on the water with our electric yacht and trawler solutions. The ultimate in freedom, comfort, and efficiency.
Our technology makes it easy to manage all electrical and mechanical boat systems, reducing the number of crew required onboard and allowing owners to get more use out of their investment.
Freedom
Spend more time on the water with less effort and fewer crew members onboard.
Our vessel-wide monitoring and control system provides the real-time monitoring and analysis necessary for semi-autonomous navigation and remote operation. Combined with solar power generation and enhanced stability control, our system allows for a wider range of navigable sea states, less stops for fuel, and hotel power—anywhere.
Comfort
An easier, more enjoyable experience with peace of mind.
Vessel-wide sensors and controls combined with enhanced roll stabilization ensure smooth sailing while a captain safely pilots from a remote location. Hear, smell, and feel less engine with our electric propulsion system and keep the cabins comfortable with an optimized cooling system.
Efficiency
Intelligent energy use with an integrated, vessel-wide monitoring and control system.
The master control system prioritizes energy distribution based on usage states, keeping the vessel operating as efficiently as possible while ensuring passenger safety. Our intelligent cooling system regulates environment more precisely, using less energy than traditional systems, leaving more energy for travel and minimizing environmental impact.
Predictable Maintenance
Minimize downtime for unscheduled repairs and maximize component lifetime with automated monitoring and analysis.
The vessel-wide network of sensors used for remote operation doubles as a system for monitoring and analyzing the health and performance of every component onboard, making it easy to predict potential failures and proactively schedule maintenance at a convenient time. Proactive maintenance means less unscheduled downtime and less collateral damage from failing parts.
Benefits for Fleet & Work Boats
Remote, Semi-Autonomous Operation
Monitor and operate remotely while improving safety and comfort for those onboard.
Our vessel-wide monitoring and control system provides the real-time monitoring and analysis necessary for semi-autonomous navigation and remote operation. Combined with solar power generation and enhanced stability control, our system allows for a wider range of navigable sea states, less stops for fuel, and the ability to anchor away from shore for extended periods of time.
Efficiency & Sustainability
Use energy intelligently with an integrated, vessel-wide monitoring and control system.
The master control system prioritizes energy distribution based on usage states, keeping the vessel operating as efficiently as possible while ensuring passenger safety. Our intelligent cooling system regulates environment more precisely, leaving more energy for travel and minimizing environmental impact.
